Cantilever Racking Single SidedCantilever Racking Single Sided

Cantilever Racking Single Sided

Our Ref No : 7015

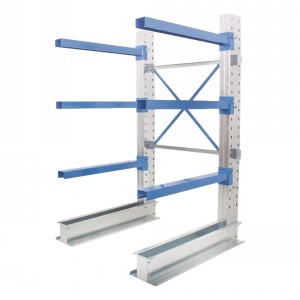

Single Sided Cantilever Racking.
Ideal for long & awkward items.
Strong and easy to build.
Based on modular bays (Starter Bays and Add On Bays).
Effective storage of long and awkward items.
Arms and base's included as standard.
Uprights have 3 adjustable heights every 75mm.
Uprights spaced 1000mm apart with a bolted cross brace supplied with each bay.
Galvanised frame work with blue powder coated arms.

Uprights are available in 3 heights:
2.0m(1976mm), 2.5m(2432mm) & 3.0m(2964mm).

Arms available in 3 lengths:
600mm (600kg)
800mm (400kg)
1000mm (250kg)
All bays are supplied with a base and column per frame plus bracing and all necessary fixings.(floor fixings not included).
Single frames include three arms, double frames include six arms & all pins needed.
Arm end stops (to secure any loose products from falling of) are not included as standard, but can be ordered.

Nominal upright heights:
2.0m (1976mm)
2.5m (2432mm)
3.0m (2964mm).

Frame: Galvanised steel.
Bracing: Galvanised Blue RAL5015
Arms: Steel Blue RAL5015
Arms: 2 degree rake.
Arm pins: Steel.
5 working days.
Product Name Price Qty
Cantilever Racking Single Sided - 2.5m High x 1000mm Wide Starter Bay
£1217.02 Inc VAT
Cantilever Racking Extra Arm 1000mm
£55.98 Inc VAT
Cantilever Racking End Stop For Arms
£10.67 Inc VAT
