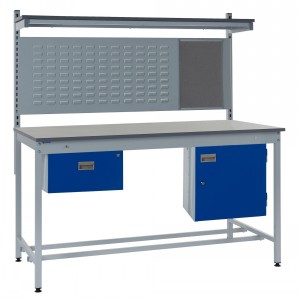

Square Tube Workbench Model C

Square Tube Workbenches In A Range Of Configurations
Manufactured in the UK.
Model C - Fitted with:
1 x single drawer unit
1 x cupboard unit
Rear support posts
Full width louvre panel & pin board
Full width upper shelf - 300mm deep laminate.

• Ideal for use in assembly, production and light industrial engineering.
• Height adjustable feet for easy leveling.
• Available in a range of popular standard configurations.
• Single drawer, cupboards, and triple drawer units (where fitted) are powder coated with a light grey carcass and dark blue fronts as standard.
• Powder-coated light grey framework.
• Cupboards & drawers are lockable - keys supplied.
• Standard height for these workbenches is 840mm.
• Delivered in knock-down form for easy on-site self-assembly.

Worktop Type:
Laminate worktop - 20mm thick
Beech timber top - 27mm thick

Overall Measurements:
Workbench working height: 840mm
Overall height: 1600mm
Workbench depth: 750mm
Workbench width: 1200mm, 1500mm or 1800mm

Cupboard & Drawer Measurements:
Single drawer unit 220mm x 420mm x 420mm
Three drawer unit: 435mm x 420mm x 420mm
Cupboard unit: 435mm x 420mm x 420mm

Square Tube Workbenches
Framework Construction:
Leg Frame 32mm x 32mm MS ERW tube - 16 gauge
Top C Sections 50mm x 25mm ¡V 16 gauge
Foot rail 25mm x 25mm MS ERW tube ¡V 16 gauge
Paint Finish:
Three stage pre-treatment and phosphate coating
One coat epoxy polyester full gloss powder coating with Germ Guard antibacterial ingredient. Powder coated light grey RAL 7035
Oven cured at 180 deg. C
Cleaning & Maintenance:
Clean paint work periodically with warm soapy water or Foaming cleaner
Oil hinges and lock sparingly as required with a light oil (3in1 or similar)

Delivery for this item is in approximately 5 working days.
